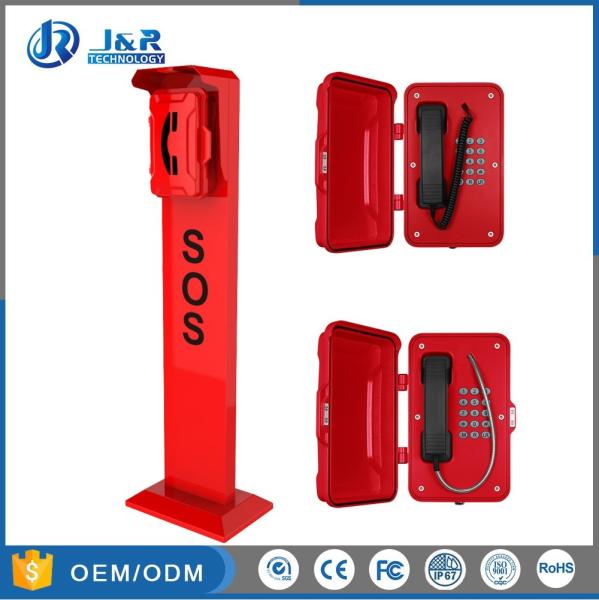

Outdoor Weatherproof Emergency Telephone Pillar Support Customized Logo and Color
APPLICATIONS of the Outdoor Weatherproof Emergency Telephone Pillar Support Customized Logo and Color
Ideal for university and college campuses, roadsides, streets, public square, car-parks, police stations, outside buildings, shopping malls, medical centers, industrial campuses, transit facilities and remote locations where local power is not available.
MAIN FEATURES of the Outdoor Weatherproof Emergency Telephone Pillar Support Customized Logo and Color
Main Features of the emergency telepone
- Standard Analog phone, or SIP/VoIP phone
- Aluminum alloy die-casting body, cold rolled steel for pillar
- Weather proof protection to IP66-IP67
- Available in Full keypad with memory or hands free operation
- Pillar mounting, Simple installation
- Inductive coupler fitted as standard for hard of hearing
- Phone line powered (Analogue)
- External power supply or PoE (SIP-VoIP)
- RJ45 port for SIP phone
- CE, FCC, RoHS, ISO9001 compliant
Main Feature of the Pillar
- Painted for outdoor use
- Made of galvanized steel
- Sleek and harmonious design free of sharp edges
- Prepared for the containment of auxiliary circuits
- Weight: 30 KG
- Dimensions: 1500*436*306 mm
- Fixing: On floor
- Color: Red ( Yellow, Orange, Blue, Black, or optional)
- Support to print Customized Logo on the phone door and pillar
TECHNICAL PARAMETERS of the Outdoor Weatherproof Emergency Telephone Pillar Support Customized Logo and Colo
| Ambient conditions |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -45°C to +85°C |
| SIP Version |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W
-Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer volume | - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker) |
| Analogue Version |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
Package Information of the Outdoor Weatherproof Emergency Telephone Pillar Support Customized Logo and Color
Unit size: 1500 *436 *306 (mm)
Packaging materials: Pearl cotton, Wooden Box
Net weight: 20 KG
Gross weight: 30 KG
